Bamburgh Castle – the before and the after

I don’t think I have ever done this before but I thought I would walk you through my thoughts and the creative process in the making of this monochrome image of Bamburgh Castle in Northumberland. I hope you will find it interesting.

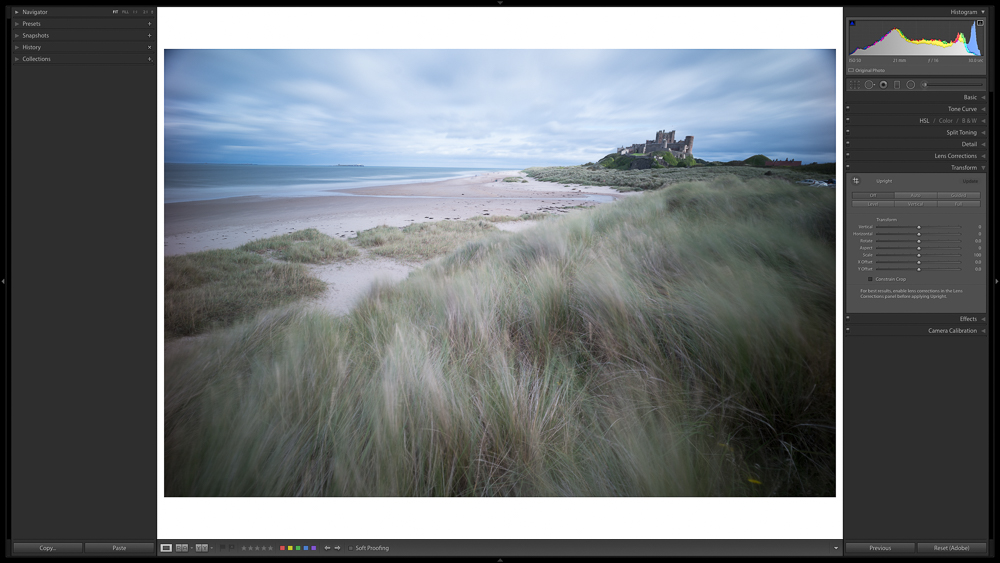

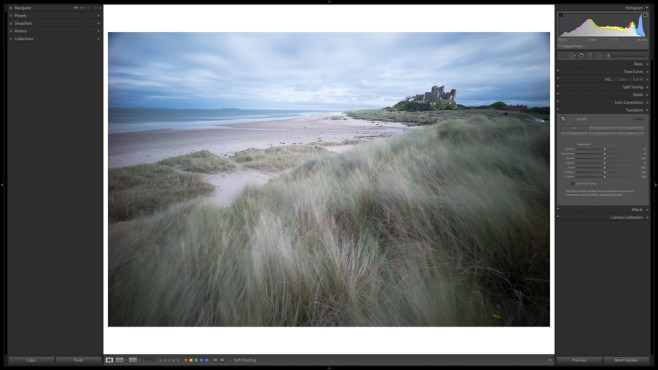

When composing the image and releasing the shutter I already had in mind what I hoped to achieve in the finished picture. I used a Zeiss 18mm wide angle lens set at f11 so everything would be sharp and in focus. However I wanted movement and drama in the image and this was achieved by using a long exposure of 30 seconds. Straight out of the camera this is how the RAW image appeared in Lightroom.

My initial impressions of the file were good. The histogram was all but perfect – a complete range of tones with no clipping in the highlights or in the shadows. There was some good texture in the sky and to my eye the right amount of blurring of the grasses. However the horizon line wasn’t level and the wide angle lens had distorted the castle. I rotated the image in Lightroom and corrected the distortion using the Transform (skew) tool in Photoshop. I also noticed some vignetting in the corners but didn’t think this would be a problem in the finished image.

A detailed view of the castle shows the amount of distortion which needed correction.

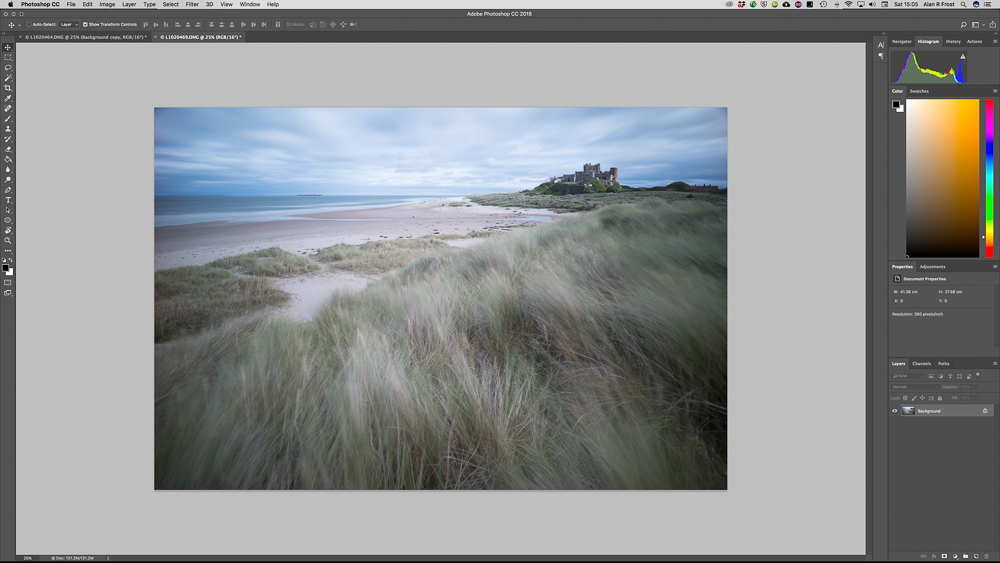

After these initial adjustments the image now looked like this.

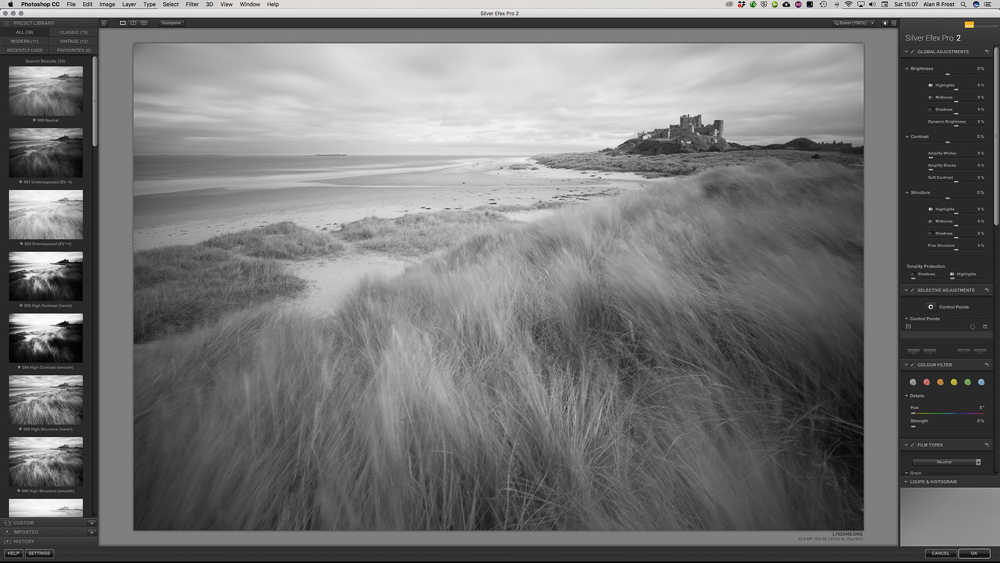

I then created a duplicate layer in Photoshop so that I could convert the image to black and white using Silver Efex Pro. A straight mono conversion looks rather bland with no contrast. This is no different to what I would expect and I know from experience this is a very workable file.

At this stage I start to visualise how I want the final image to appear. I already know from the histogram that I have a good range of tones which provides me with plenty of scope to process the file in any number of ways. Black and white photography has this great flexibility to be very creative and this has always appealed to me.

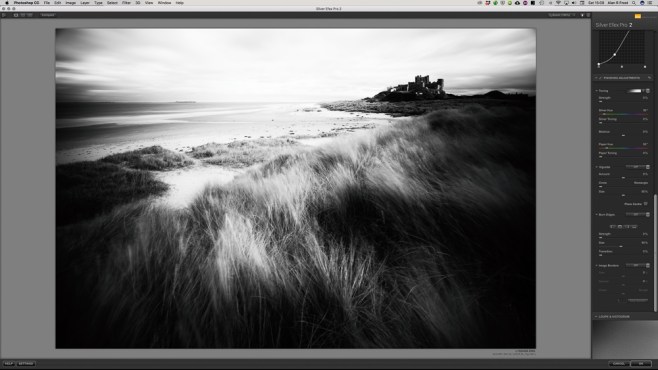

In Silver Efex Pro I will often start with one of the presets (the thumbnails in the left hand column). Having applied the preset ‘high contrast – smooth’ it gives me a starting point but nothing more. (See below)

I now work quite intuitively and because I have used this software for many years I instinctively know which sliders and control points to use to give the result I am looking to achieve. Fairly obviously I have lost detail in the sky which I need to restore. The foreground is too dark, lacking detail in certain areas and the overall contrast is too great. The castle is virtually a silhouette and I need to lighten this part of the picture.

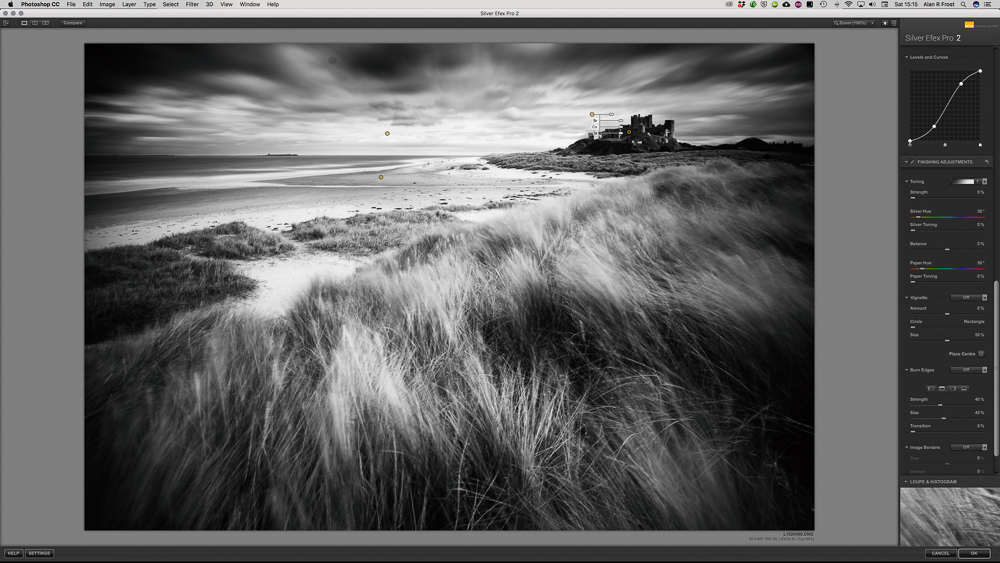

I go ahead and make these changes which are done in the space of just a few minutes. I feel I am now getting close to what I consider to be the final picture. It’s better but it’s still not right.

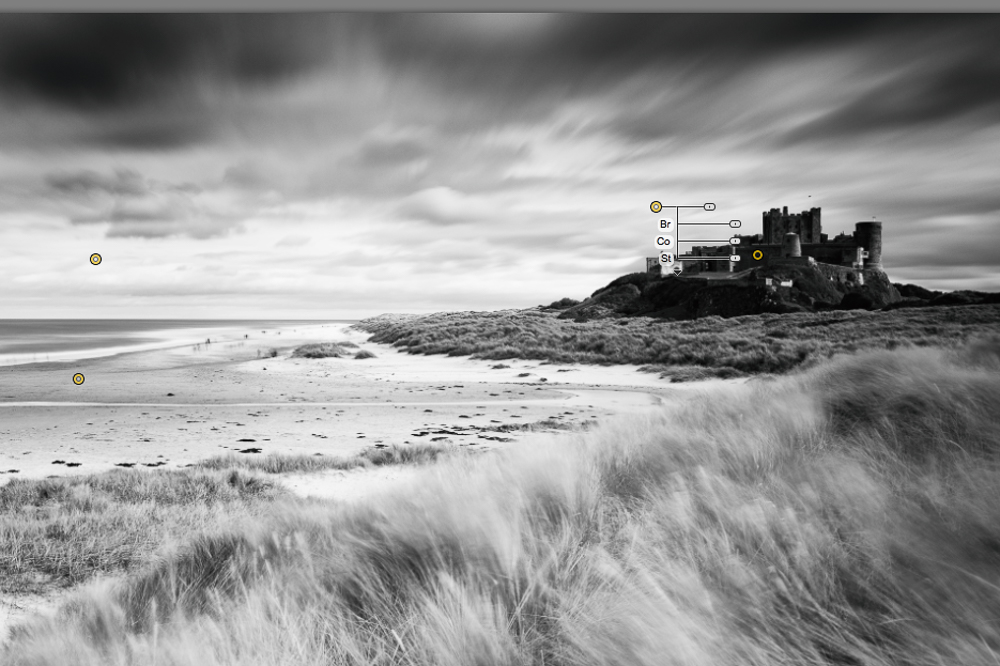

The screen grab below shows a crop of the image indicating some of the control points I have applied to selectively darken or brighten certain parts of the image.

It’s at this point that I became more aware of the ‘shadowy’ figures on the beach to the left of the castle. Do I leave them in or clone them out? It’s a personal choice but I took the view they are more of a distraction and being so small in the frame they don’t really add anything to the photograph.The content aware tool in Photoshop quickly ‘cleans up’ this area.

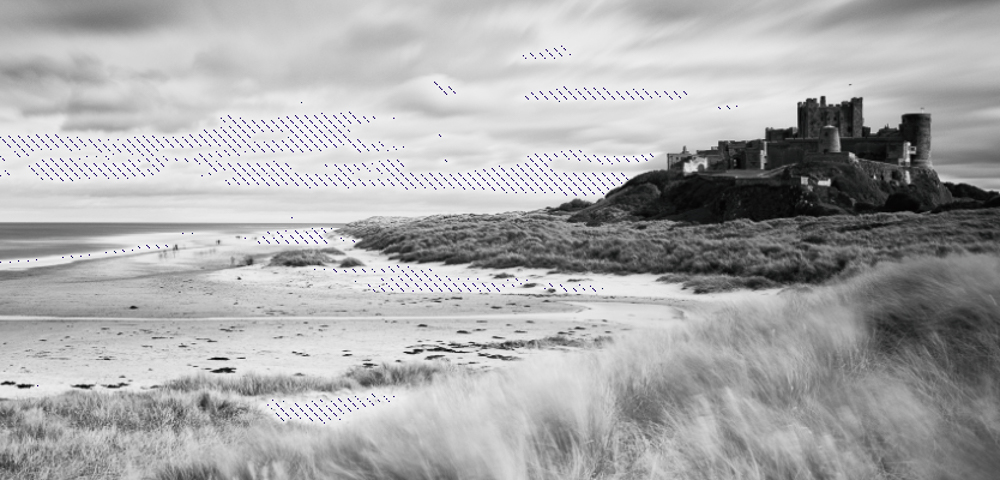

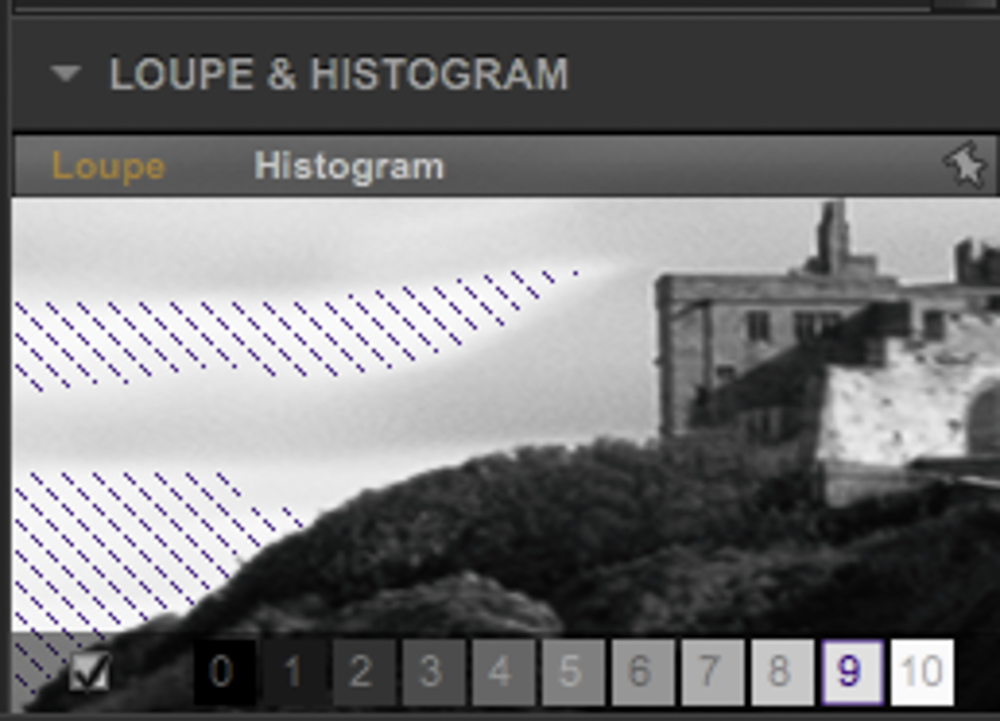

I am now at the stage where I am checking the finer but all important details. As I will almost certainly want to print this photograph I don’t want the brightest areas to be in Zone 10. Silver Efex has a very useful feature whereby you can hover the cursor over one of ten zones and it will highlight parts of the image which correspond to that degree of brightness.

Having done this I close Silver Efex, flatten the image in Photoshop, create a duplicate layer, zoom in to 100% and check and remove any sensor spots. I found one or two but again using the content aware tool these are easily and quickly removed. I have to say at this point that Photoshop is far better cleaning a file thnt the clone or heal tool in Lightroom.

Finally I save the image as a High Resolution Tiff file which automatically sits alongside the original file in Lightroom.  I like then to live with the result for a few days. Revisit what I have done and fine tune where necessary. It’s all part of my workflow, my creative process. Last but not least I added a ‘split tone’ in Lightroom.

And finally, the finished photograph of Bamburgh Castle.

I am very happy with the result and I hope you have enjoyed this walk through of my workflow. It’s nothing ground breaking but it works for me and I can achieve what I want quite quickly. I don’t like to rush but nor do I have the patience or time to spend hours processing an image.  If you have any points you would like to raise or questions you would like to ask, do please use the comments section.
